能源管理

智能化能耗管理方案,降低能耗8~15%

——

Data Acquisition Equipment

数据采集设备

LMH1237T

型号LMH1237T

Range: ±80g Sensitivity: 100mv/g Temperature Measurement Range: -40℃~+120℃ Built-in IEPE circuit, isolated output, constant current source power supply Solid and reliable laser sealing welding Connectors have side exit, suitable for locations with limited space. IP68, corrosion-resistant, suitable for harsh industrial environments

LMH1237T

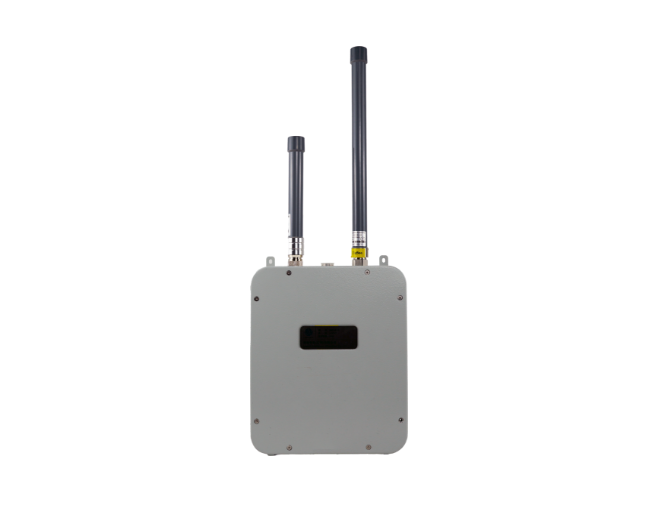

IMS-W-10

型号IMS-W-10

支持1路RS485接口,可连接DCS/PLC
支持以太网、4G、光纤、Zigbee等多种通讯方式
支持断网数据存储,联网后自动补传
灵活的数据采集策略配置,适应不同设备工况
防护等级:IP66

IMS-W-10

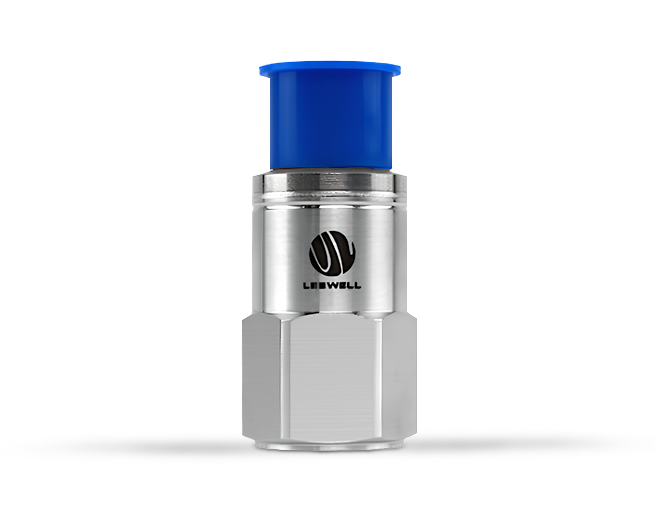

LMH1229T

型号LMH1229T

量程:±80g
灵敏度:100mv/g
测温量程:-40℃~+120℃
内置 IEPE 电路,隔离输出,恒流源供电
激光密封焊接,牢固可靠
防护等级 IP68
耐腐蚀,可用于环境恶劣的工业现场

LMH1229T

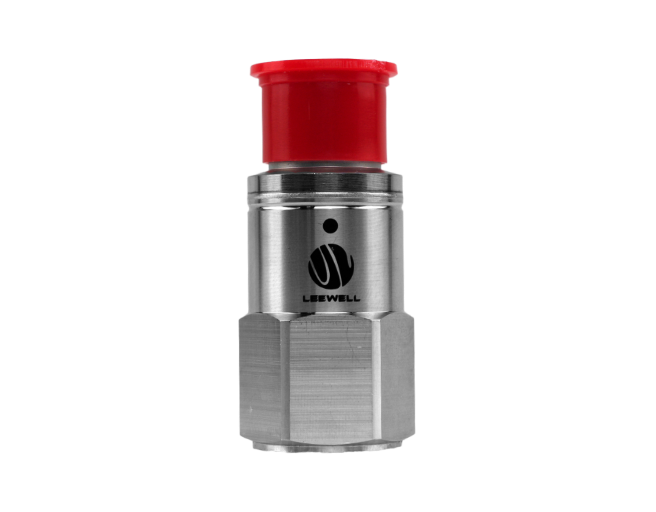

LML1230T

型号LML1230T

量程:±10g
灵敏度:500mv/g
测温量程:-40℃~+120℃
内置 IEPE 电路,隔离输出,恒流源供电
激光密封焊接,牢固可靠
低频响应优秀
防护等级 IP68
耐腐蚀,可用于环境恶劣的工业现场

LML1230T

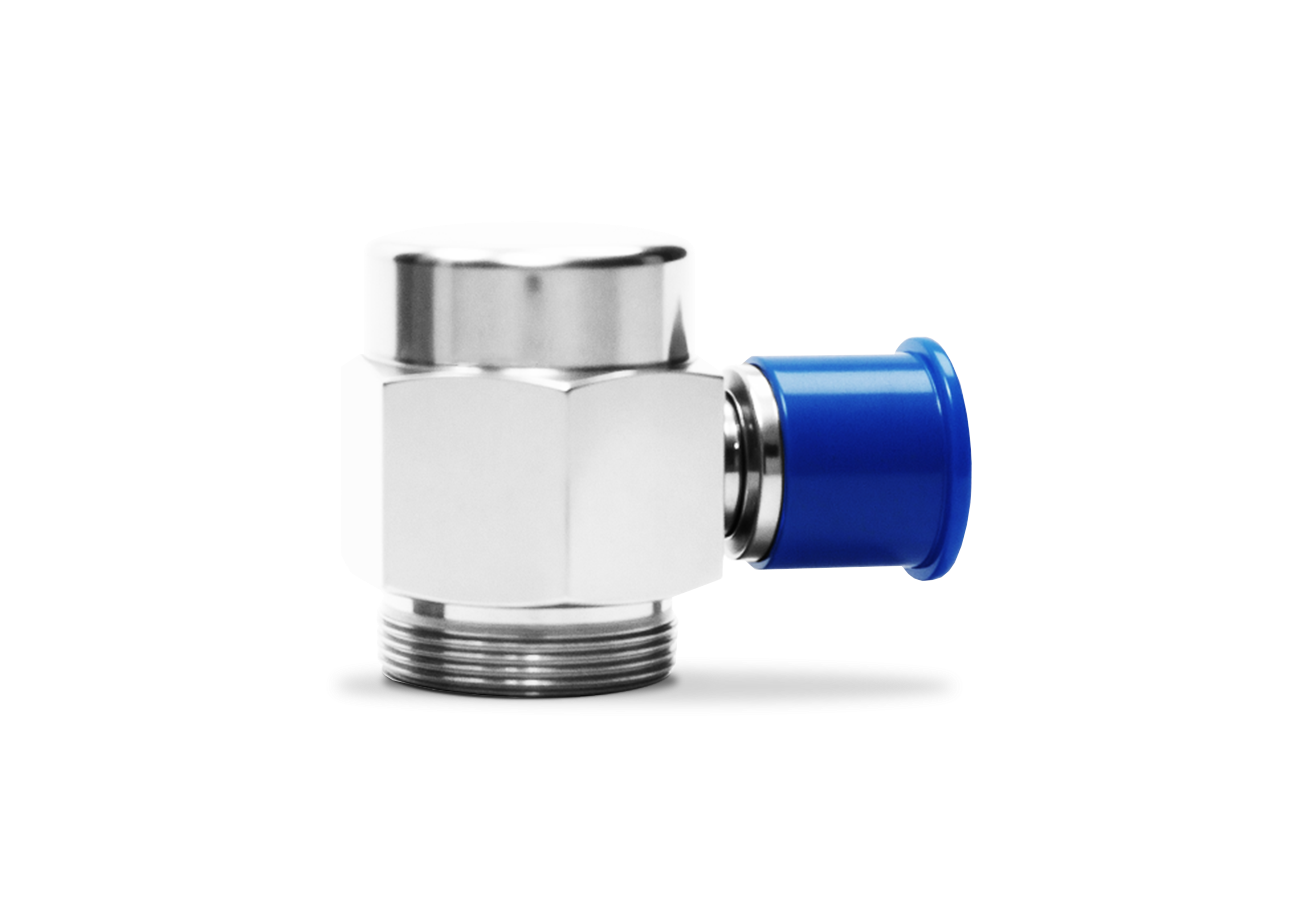

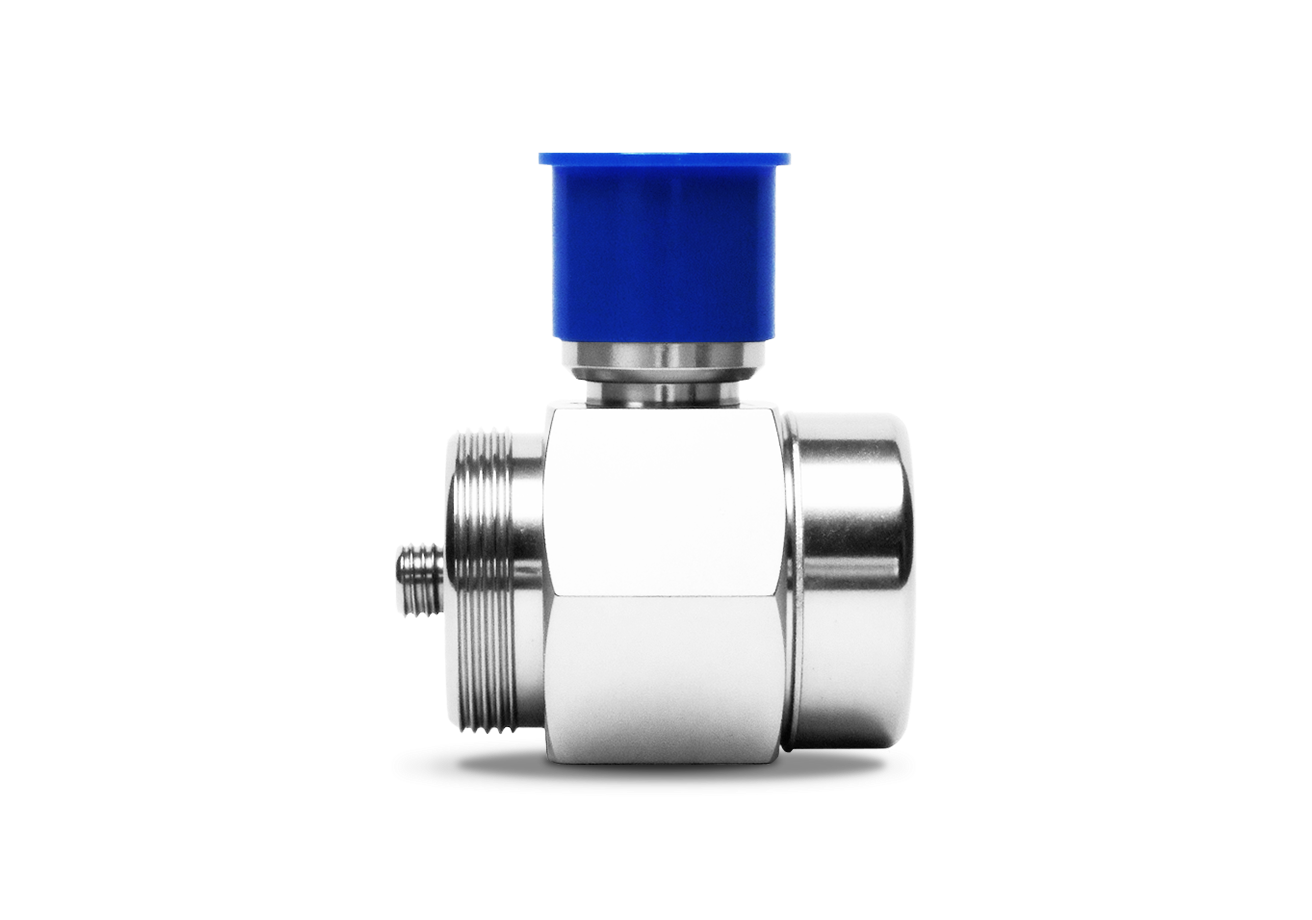

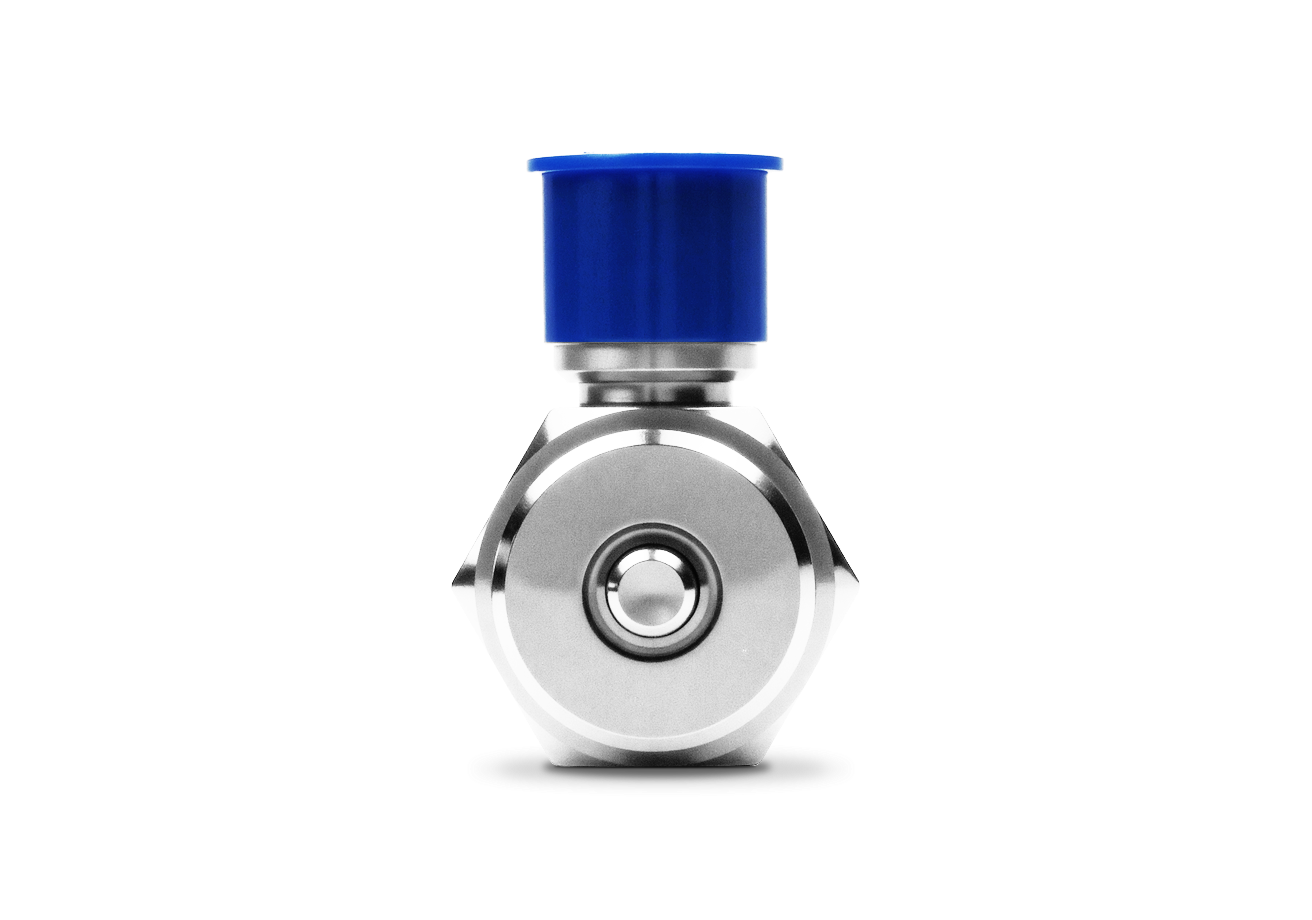

LMH1237T

型号LMH1237T

量程:±80g
灵敏度:100mv/g
测温量程:-40℃~+120℃
内置 IEPE 电路,隔离输出,恒流源供电
激光密封焊接,牢固可靠
连接器侧出,可用于空间较小的位置
防护等级 IP68
耐腐蚀,可用于环境恶劣的工业现场

LMH1237T

MA802-7

型号MA802-7

量程:3.15~16kHz±2dB
灵敏度: 40mV(-28dB)±2dB
工作温度:-10℃~+80℃
特殊的声学设计降低自由场频率响应影响,满足IEC 61672-1的要求
耐腐蚀,可用于环境恶劣的工业现场

MA802-7

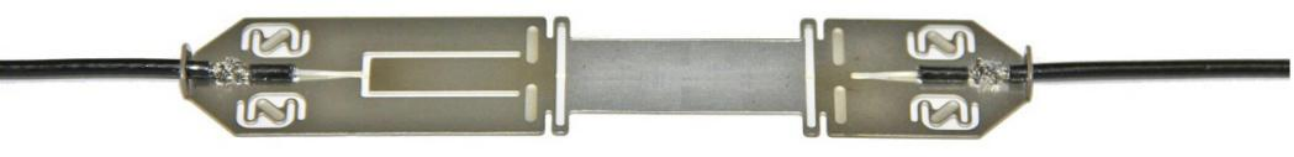

LF3155

型号LF3155

Operating Temperature: -40℃~+80°C Large strain measurement range Built-in temperature compensation Resistant to electromagnetic interference Electrowelded packaging for long-lasting durability

LF3155

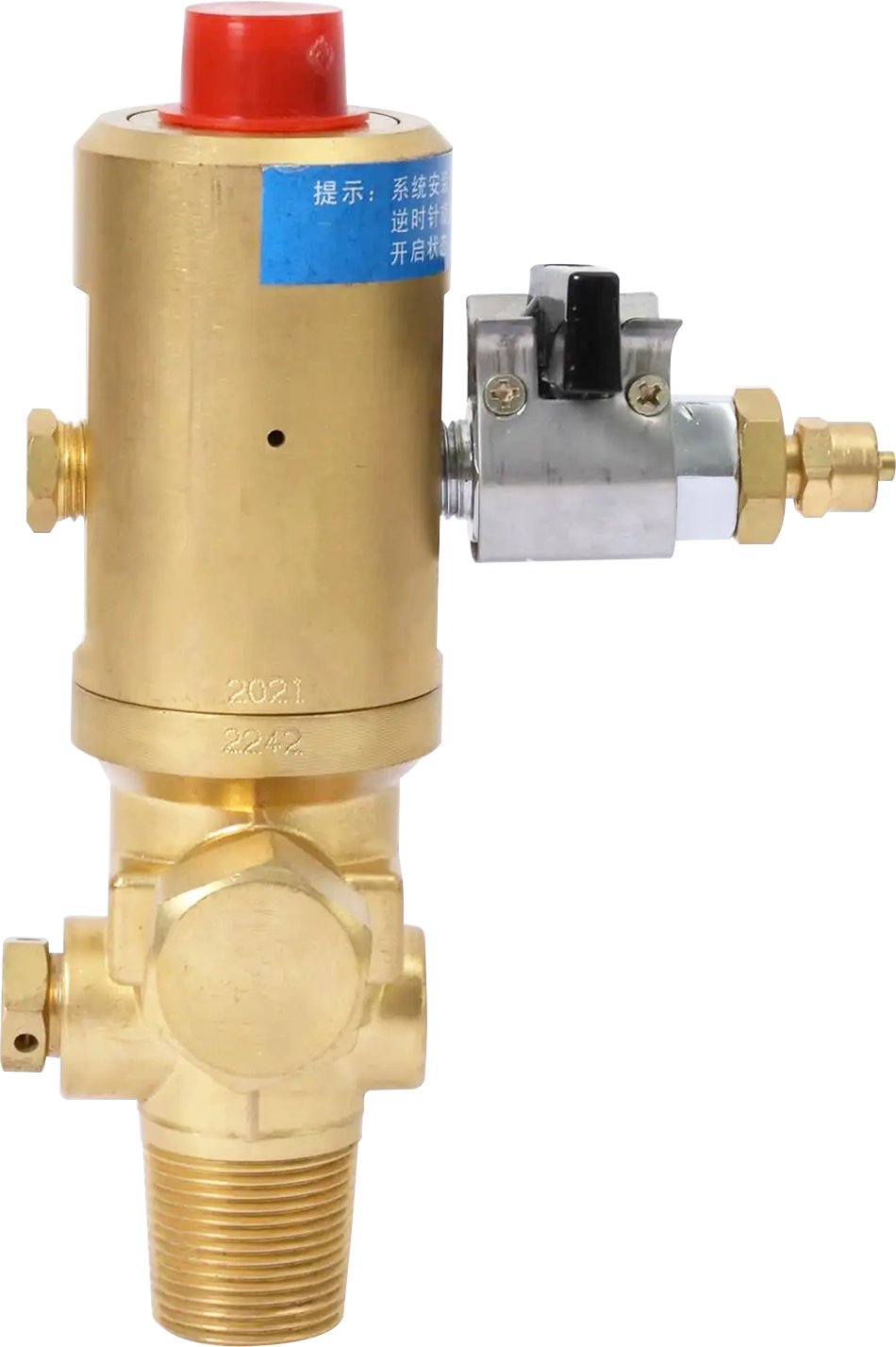

Container Valve

型号Container Valve

Adopt CuZn39Pb3, the working pressure is not less than 15Mpa . The hydraulic strength test is carried out at 1.5 times the working pressure kept for 5 minutes without deformation or leakage. The gas tightness test is carried out under 1.1 times the working pressure. When the valve is closed, there is no bubble leakage; when the valve is open, the leakage amount of bubbles in each connection sealing part should not exceed 20 / min. The salt spray corrosion test shows that there is no obvious corrosion damage in each part of the container valve and no performance decline. The safety release diaphragm of the container will burst at 1.25 (±0.0625) times maximum working pressure. The operation of the container valve is flexible, reliable, and not prone to any failure and structural damage.

Container Valve

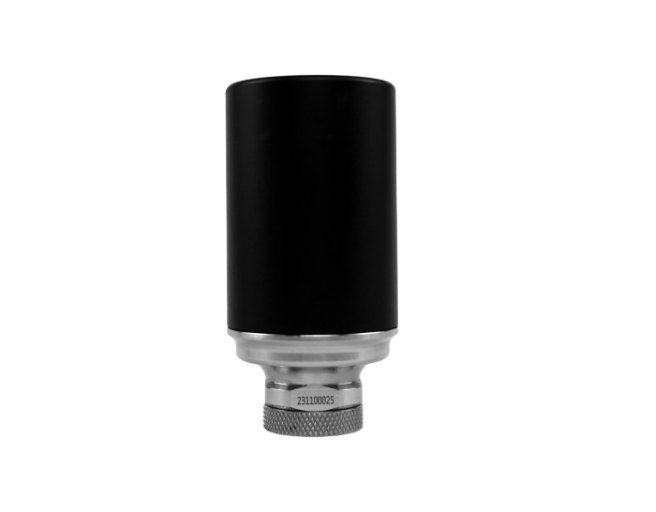

LW101

型号LW101

Measuring range: ±50g Temperature measuring range: -50℃~ +150℃ IP67 Vibration-temperature integration, high-frequency Ultra-low power design, long endurance

LW101

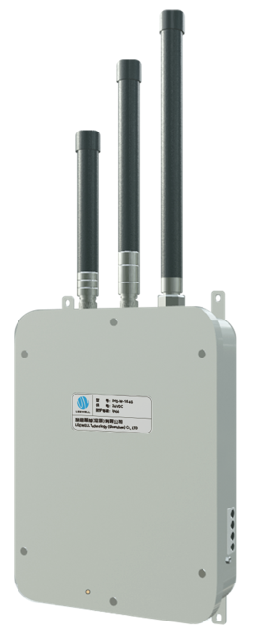

YHC24W

型号YHC24W

Explosion-proof mark: Ex ib I Mb RS485 interface able to connect to DCS/PLC Multiple communication methods including Ethernet, fiber optic, Zigbee, etc. Data storage during network outages, and automatic data upload upon reconnection IP66

YHC24W

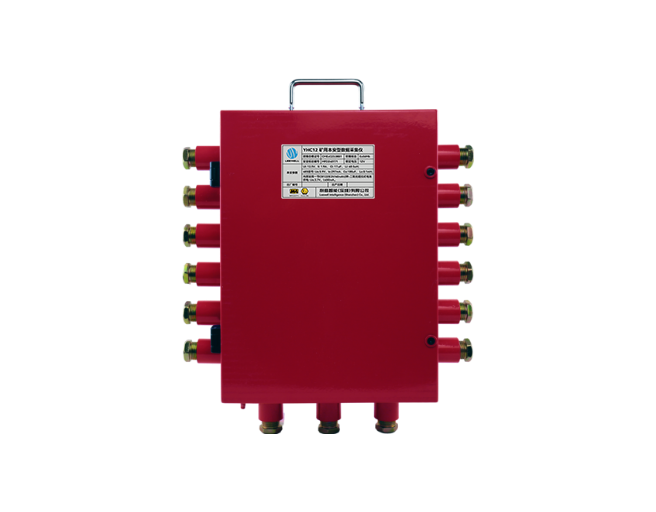

YHC12

型号YHC12

Explosion-proof mark: Ex ib I Mb Modular design, 8-channel IEPE acceleration input for data acquisition ADC acquisition, 8-channel fully synchronized sampling Four-channel speed input, supports speed-related data acquisition Two-channel RS485 interfaces able to connect to DCS/PLC Self-diagnostic function, automatically detecting short circuits and open circuits

YHC12

GZW120/80W

型号GZW120/80W

Vibaration and temperature integrated Explosion-proof mark: Ex ib I Mb Range: ±50g Temperature measurement range: -50°C to +150°C Integrated vibration and temperature sensor, high-frequency response IP67

GZW120/80W

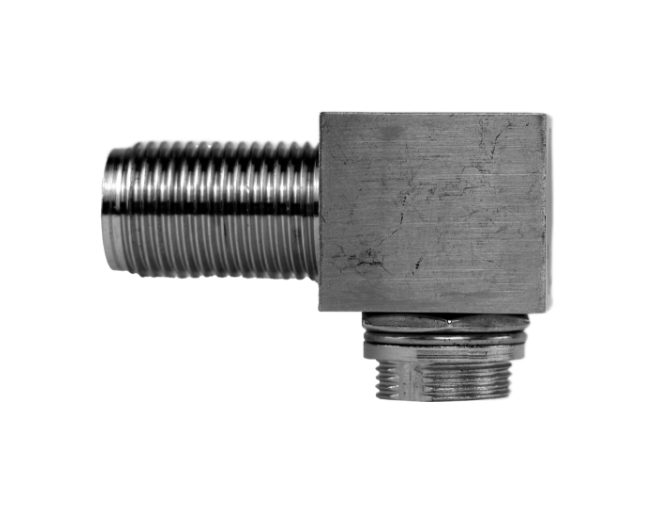

GSH3000

型号GSH3000

Explosion-proof mark: Ex ib I Mb Speed measurement range: 0~3000 r/min Rated supply voltage: DC 12V Output signal: 1 channel, (0~6000) Hz pulse signal IP54 Corrosion-resistant housing, suitable in harsh industrial environments

GSH3000

GWZ120/300

型号GWZ120/300

Explosion-proof mark: Ex ib I Mb Built-in IEPE circuit, isolated output, constant current source power supply Laser sealing welding, solid and reliable Suitable in harsh industrial environments Equipped with temperature and vibration monitoring functions IP68

GWZ120/300

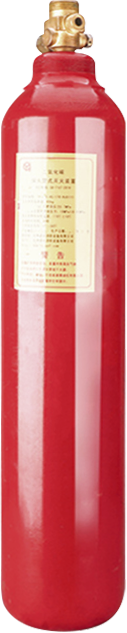

Fire extinguisher

型号Fire extinguisher

Steel seamless cylinders that complt with the GB5099-1994 standard. The maximum working pressure of the cylinder is 15 MPa. When subjected to a hydraulic strength test at 1.5 times the working pressure for 3 minutes, there is no leakage or significant residual deformation. When subjected to a hydraulic strength test at 1.1 times the working pressure, the container should have no bubble leakage. When subjected to a hydraulic strength test at 3 times the working pressure, the container shows no signs of rupture.

Fire extinguisher

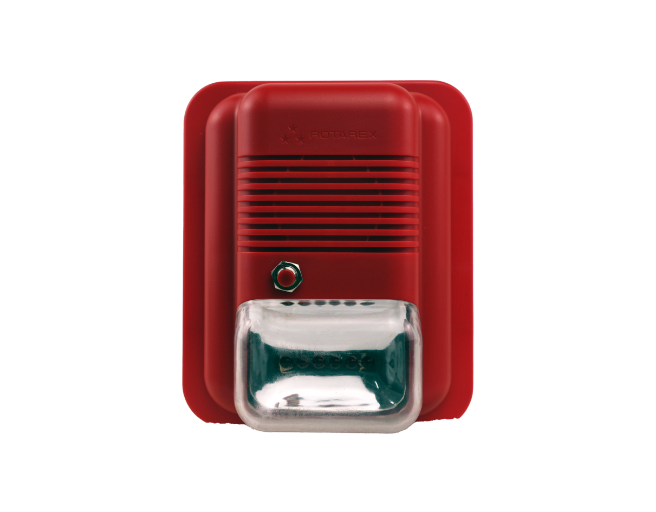

Alarm Box

型号Alarm Box

Dimension: 115×136×53mm Volume: 100 decibels Power supply: 9V carbon-zinc battery Battery replacement cycle: 3 months (in standby mode) Signal port I/O: (Input/Output)

Alarm Box

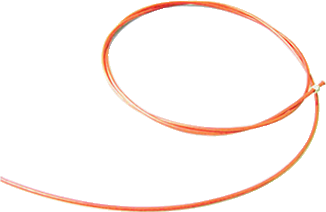

Fire Detection Tube

型号Fire Detection Tube

Outer diameter: φ8mm Inner diameter: φ4mm No brittleness or cracking at an -20℃, and no softening or deformation at 55℃ Not activate when maintained at 140℃ ± 2℃ for 2 minutes Activate within 20 seconds at 167℃ ± 8℃ The working pressure should not be less than 1.0 MPa

Fire Detection Tube

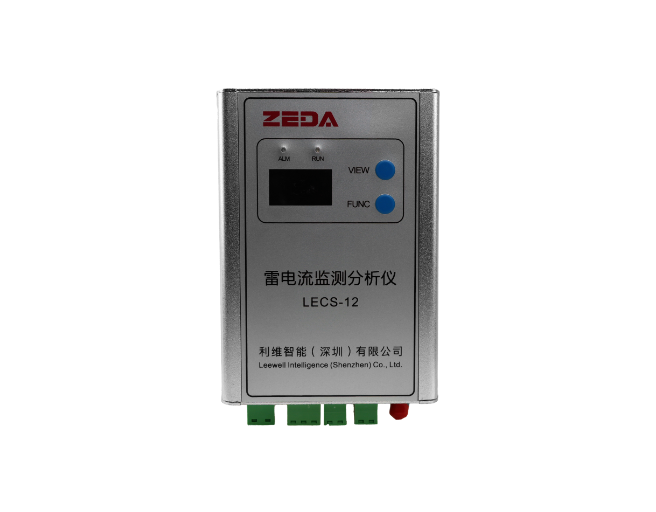

Lightning Analyzer

型号Lightning Analyzer

Power supply: DC10-28V Overall power consumption: ≤1W Lightning orotection capability: Imax (8/20us) 100KA Installation options: rail and bolt mounting Advanced electromagnetic compatibility design for ultra-low radiation Human-Machine Interface for monitoring, fault indication, and historical information inquiry Storing over 100 SPD historical alarm records and 500 lightning event records RS485 communication, easy to connect to monitoring center

Lightning Analyzer

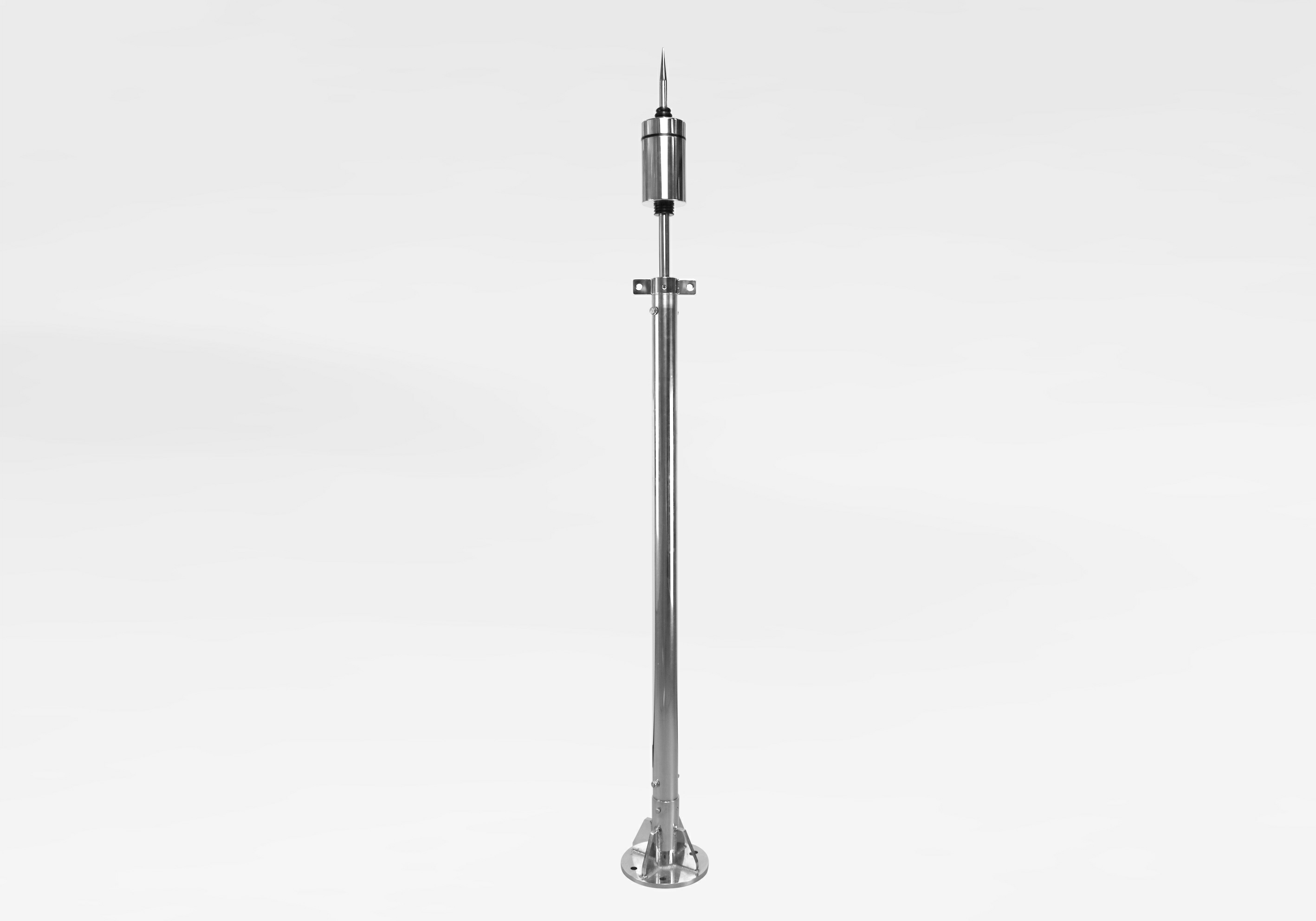

Lightning Rod

型号Lightning Rod

Height: 1500mm Length (Lightning Receptor): 470mm Length (Support Rod): 1000mm Diameter: 22mm Four sets of ion generation systems for more precise lightning strike points No external power supply required Fully active early discharge, maintenance-free

Lightning Rod

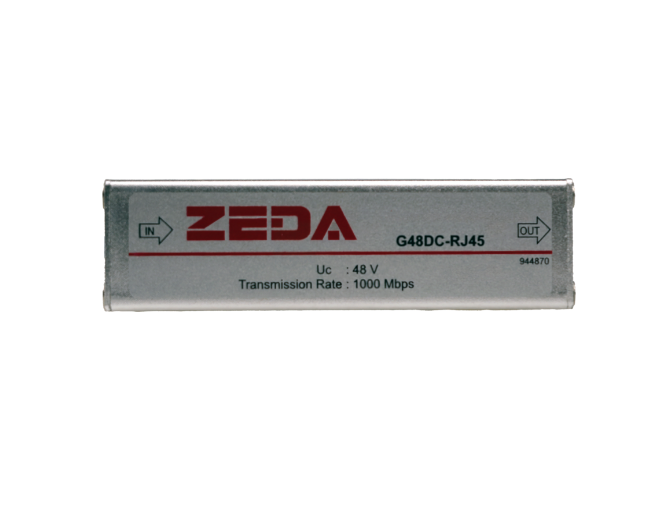

Signal protection SPD (Surge Protective Device)

型号Signal protection SPD (Surge Protective Device)

Nominal Voltage (UN): 48V Maximum continuous operating voltage (Uc): 48V Maximum continuous operating voltage (Uc): 34V Maximum continuous operating voltage POE (pair-to-pair): (Uc) 57V Low insertion loss, wide frequency range High surge current capacity, fully shielded Low residual voltage, easy wiring

Signal protection SPD (Surge Protective Device)

LMH1237T

Range: ±80g Sensitivity: 100mv/g Temperature Measurement Range: -40℃~+120℃ Built-in IEPE circuit, isolated output, constant current source power supply Solid and reliable laser sealing welding Connectors have side exit, suitable for locations with limited space. IP68, corrosion-resistant, suitable for harsh industrial environments

LMH1237T

+

项目案例一

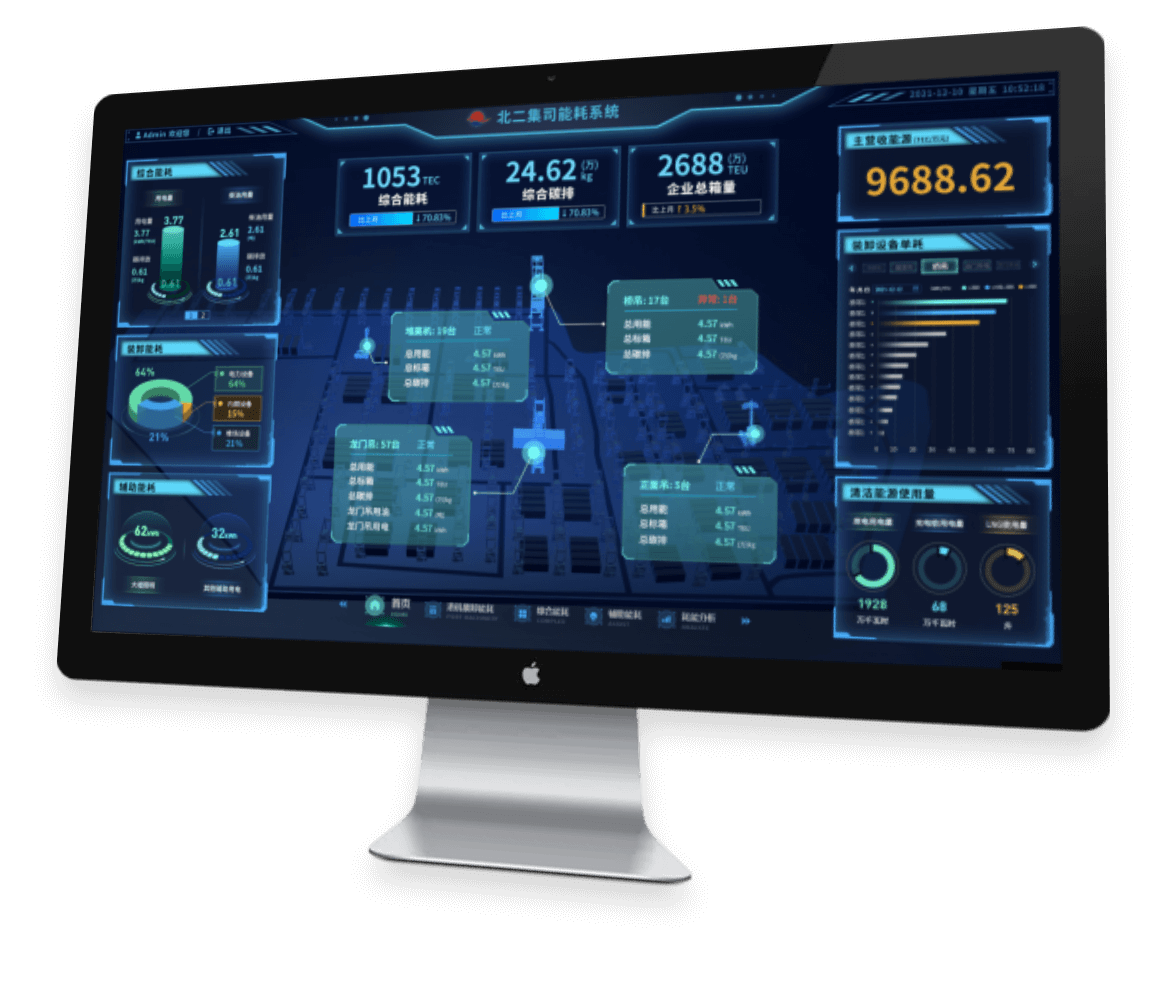

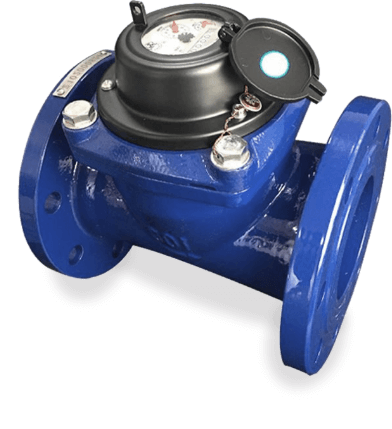

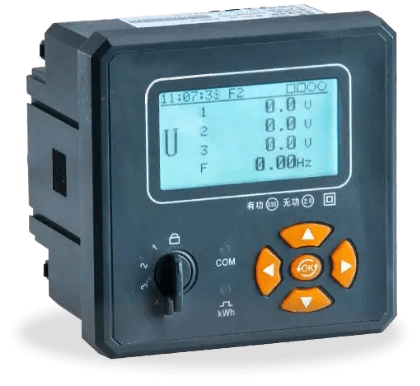

某港口有限公司,通过高压系统接入、安装仪表方式覆盖到三级用电数据,找出节能点;通过加油站、油耗仪数据的接入油耗数据,避免偷油漏油的风险;通过加装带通讯的水表实现水的损耗管理,提前预知漏损点大概位置。 通过接入TOS生产系统,实现设备单耗、司机单耗等多维度分析,优化用能习惯,达到节能的目的;提供自定义的面板与报表工具,实现各种定制业务的可视化功能,满足用户能耗分析的习惯。

项目案例一

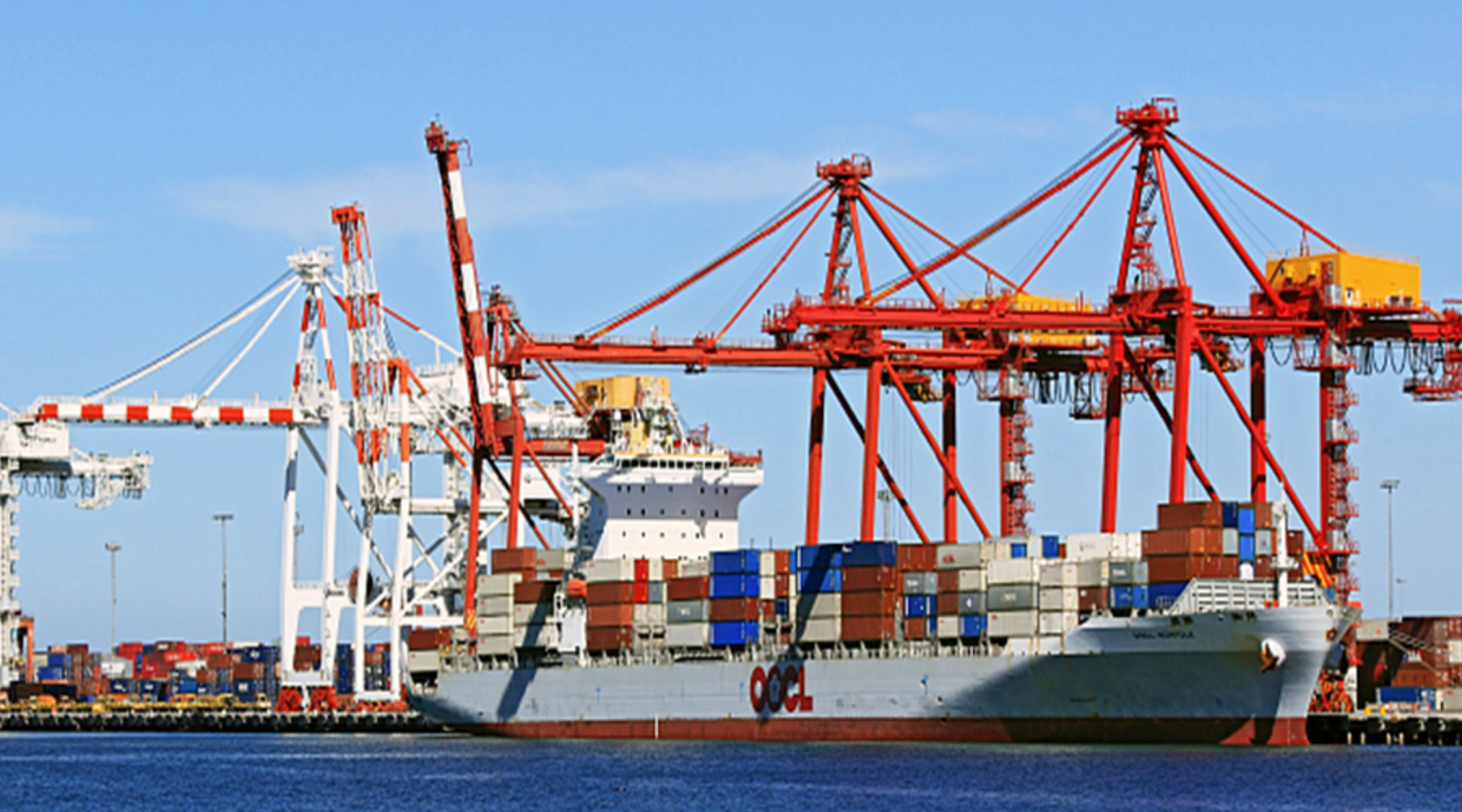

项目案例二

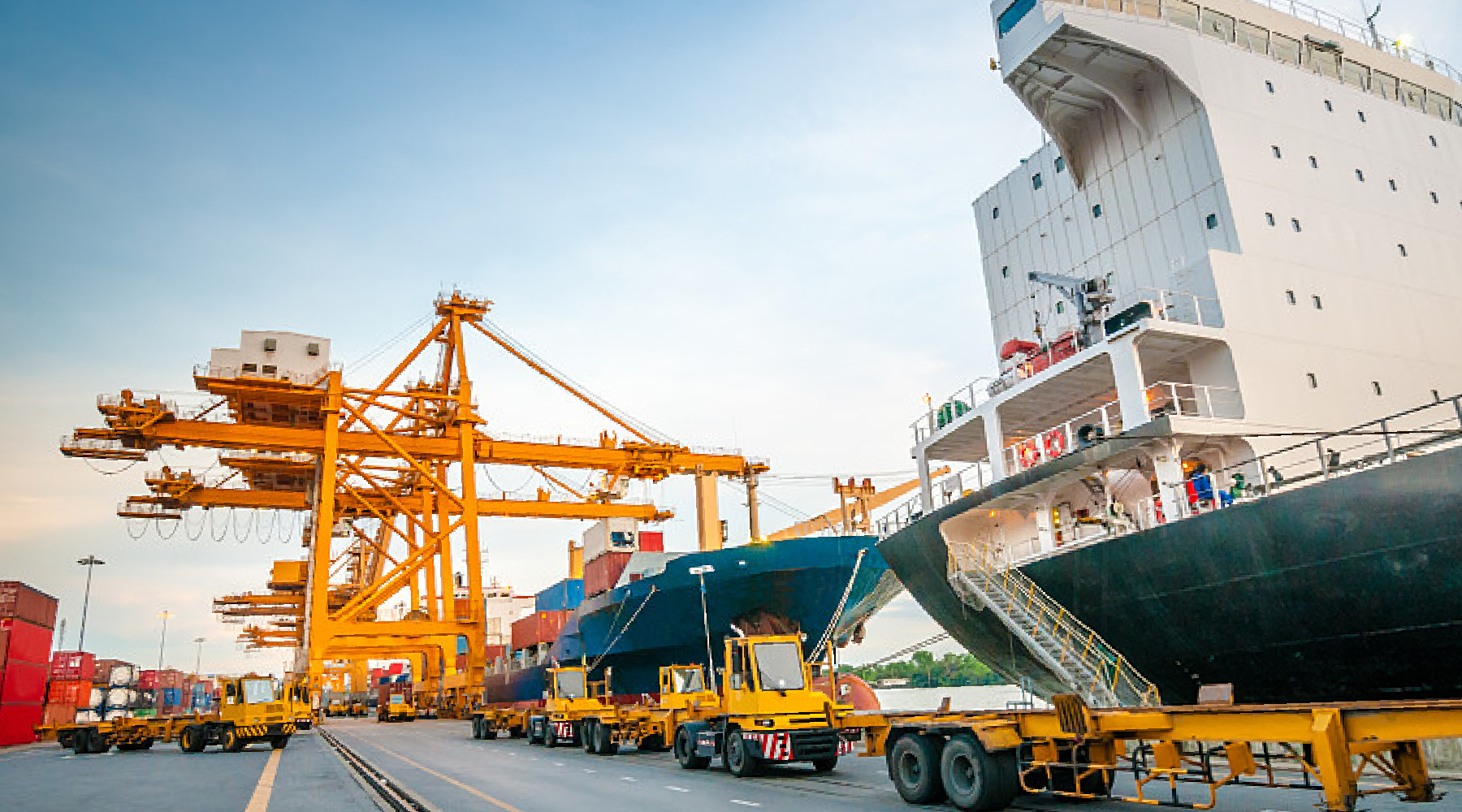

某集装箱码头集团有限公司现拥有专用泊位总数共 25 个,岸线总长6838 米,桥吊 61 台,岸线资源涵盖集团 10 万吨级以上的集装箱专用泊位,可接泊 1.8 万标箱的超大型集装箱船,年通过能力超过1000 万标箱。 项目建设的“ 集团化能源在线监控系统 ”。实现了对港口生产作业机械的作业派工、精确定位、动态跟踪、过程控制和油耗的可视化管理,提高装卸效率、降低运营成本,提高港区的管理水平和效率,增强竞争力。

项目案例二

Data Acquisition Equipment

数据采集设备

匠心筑梦 创新致远 | 利维智能2025年会盛典精彩回顾,共启新征程

+

匠心筑梦 创新致远 利维智能2025年会盛典精彩回顾,共启新征程

收起

Data Acquisition Equipment

数据采集设备

Invitation from Zhejiang Seaport Group to Provide Professional Training for Terminal Technicians

+

Invitation from Zhejiang Seaport Group to Provide Professional Training for Terminal Technicians

收起

Data Acquisition Equipment

数据采集设备

利维智能为浙江省海港集团技术人员提供专业培训

+

2024年11月23日及30日,应浙江省海港集团诚挚邀请,利维智能为码头技术人员提供两场专业培训

收起

Data Acquisition Equipment

数据采集设备

利维智能参编国标之工业互联网平台监测分析指南

+

利维智能参编国家标准《工业互联网平台监测分析指南》,助推行业标准化建设

收起

Data Acquisition Equipment

数据采集设备

Opening a new era of smart ports, Leewell leads a new leap in Indian logistics!

+

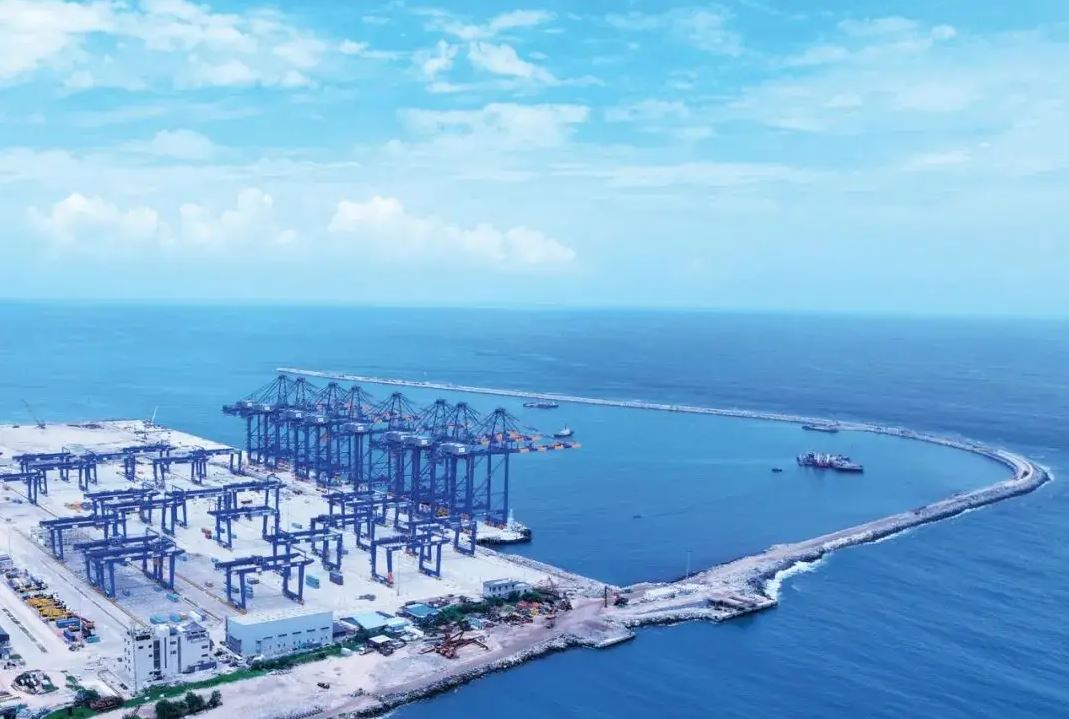

On July 11, 2024, the first commercial vessel, Maersk San Fernando, officially started operation at Adani Group's automated terminal in Vijinjam, India. Leewell Intelligence provided the intelligent sensing system for 8 QCs and 24 RMGCs at the terminal, and built a group-wide equipment management platform for the Group. It not only symbolizes the successful opening of a new era of commercial operation for India's first automated terminal, but also fully demonstrates our company's strength in providing a full range of intelligent monitoring solutions in the field of automated terminals.

收起

Data Acquisition Equipment

数据采集设备

开启智能港口新纪元,利维智能助力印度物流新飞跃!

+

2024年7月11日,印度Adani集团维津詹姆自动化码头迎来首艘商业船舶——马士基圣费尔南多号(Maersk San Fernando)的正式作业,利维智能为该码头8台岸桥、24台双悬臂轨道吊设备提供智能监测系统并为印度Adani集团构建了全集团的设备管理系统。这不仅象征着印度首个自动化码头成功开启商业运营的新纪元,也充分展示了利维智能在自动化码头领域提供全方位、一站式智能监测方案的实力。

收起

Data Acquisition Equipment

数据采集设备

Leewell Exhibited at TOC Europe 2024 to Show Cutting-edge Technical Solutions

+

Leewell, as a provider of intelligent operation and maintenance solutions, participated in this exhibition to help the green and intelligent development of the port and logistics industry, gaining a lot of attention.

收起

Data Acquisition Equipment

数据采集设备

利维智能亮相TOC Europe,展现行业前沿技术与解决方案

+

2024年6月11日至13日,2024年港口集装箱供应链展览会TOC Europe在荷兰鹿特丹Ahoy中心举行,此次展会汇聚了全球各地港口物流专家、技术从业者和行业相关人士。利维智能作为智能运维解决方案提供商亮相本次展会,助力港口物流绿色化、智能化发展,收获了大量关注。

收起

Data Acquisition Equipment

数据采集设备

利维智能 | 乘龙而上 开工大吉

+

利维智能,乘龙而上,开启新征程!

收起

Data Acquisition Equipment

数据采集设备

坚甲利兵 锐意维新 | 利维智能2024年会盛典暨泉州之行圆满落幕

+

1月20日-22日,利维智能的全体员工共聚泉州,感受闽南的风土人情和文化魅力。

收起

Data Acquisition Equipment

数据采集设备

Leewell was invited to participate in the Tencent Global Digital Ecosystem Summit

+

        From September 7 to 8, 2023, 2023 Tencent Global Digital Ecosystem Summit was held in Shenzhen International Convention and Exhibition Center. As an industrial partner of Tencent, Leewell was invited to attend the conference, jointly helping the digitalization and  intellectualization development of thousands of industries.        In the afternoon, T

收起

Data Acquisition Equipment

数据采集设备

利维受邀参与腾讯全球数字生态大会

+

2023年9月7日-8日,2023年腾讯全球数字生态大会在深圳国际会展中心召开,利维智能作为腾讯的产业合作伙伴,受邀出席了本次大会,共同为数实融合,千行百业的数字化、智能化、智慧化发展助力。下午腾讯产业合作伙伴峰会以“行稳致远,共创繁荣新生态”为主题,共同探讨产业生态合作的新机会,并通过产业互联网的战略声音、重点行业实践的深度解析、未来趋势的洞察洞悉,合作伙伴间实现共生共享共赢。此外,腾讯面

收起

Data Acquisition Equipment

数据采集设备

欧洲TOC,利维之先机

+

      2023年6月13日,为期3天的TOC欧洲展会正式拉开帷幕。我司委派精英团队参加本次展会,以“市场+专家”的小组模式与码头用户、主机厂、顾问公司等相关方进行交谈,从不同的角度倾听行业的声音。       2023年6月14日,根据首日收集的信息,如“数据采集的延迟性问题”、“数据安全性问题”等,我司技术专家徐驰结合“新一代产品特点”码头终端用户进行深入拓展,用专业打动客户。通过前两天的交流,越来

收起

Data Acquisition Equipment

数据采集设备

福兔迎新 岁喜安康

+

福兔迎新 岁喜安康

收起

Data Acquisition Equipment

数据采集设备

The National Standard Meeting

+

Leewell was invited to the third working group meeting of the national standard

收起

Data Acquisition Equipment

数据采集设备

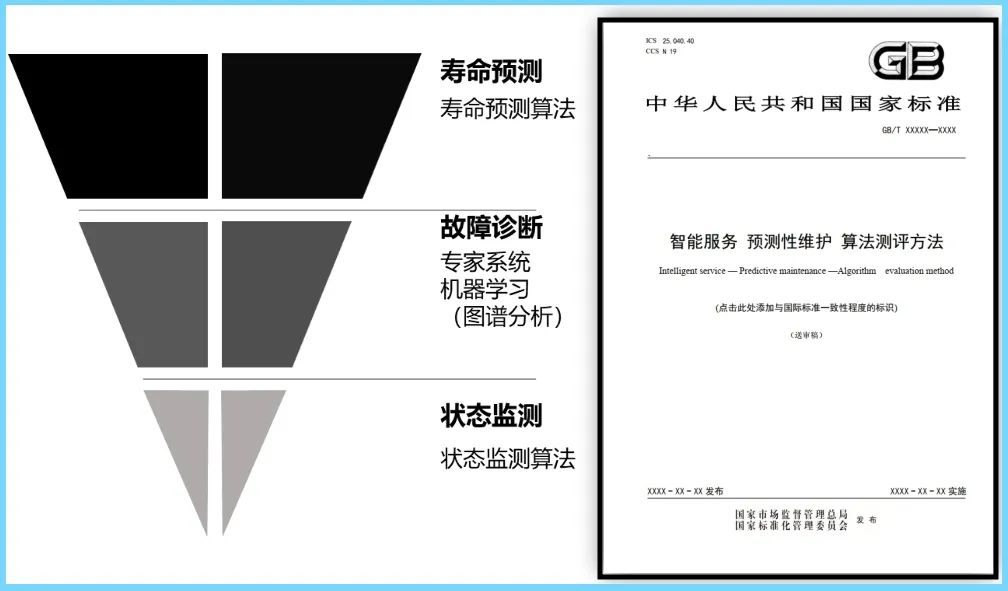

《智能服务、预测性维护、算法测评方法》国家标准第三次工作组全体会议顺利召开

+
